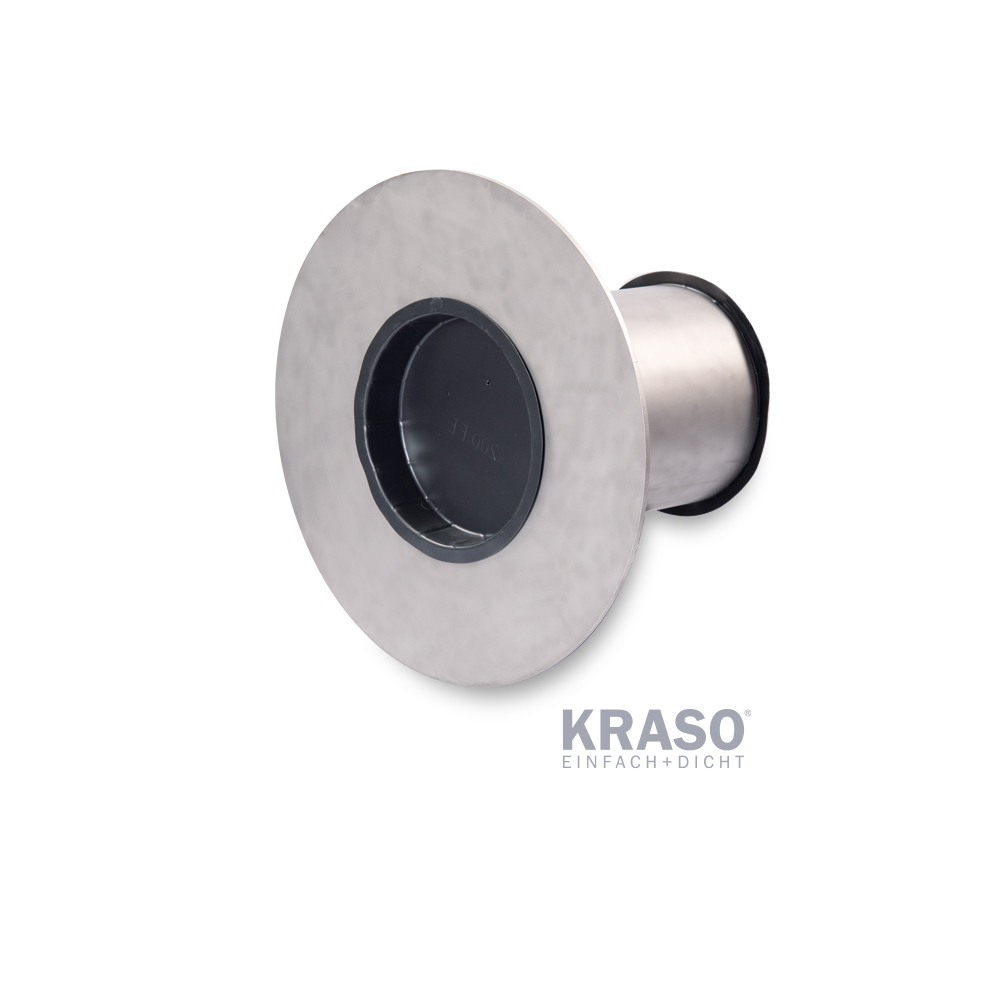

KRASO Casing E/FE/KF (piece)
Stainless steel true diameter casing with stainless steel bonding flange, surrounding approx. 12 cm, according to DIN 18533, for concreting, made of non-corrosive stainless steel V2A, for the installation of pipes or cables using a sealing insert (not included in the scope of supply), with 2 KRASO Covers as an installation aid. ID = InternalDiameter true diameter casing | DIN 18533 W1 -E and W2.1 -E
Simple intergation into the sealing of larger areas
+ True diameter casing with surrounding bonding flange according to DIN 18533 for a simple and fast integration into the sealing of larger areas (“black tank“)
+ As a recess for retrofit installation of pipes or cables using a sealing insert!
+ Available in non-corrosive stainless steel or with thick-walled true diameter plastic casing
+ DIN 18533 W1 -E and W2.1 -E
Спецификации
| Internal Diameter ID | 80, 250, 100, 125, 150, 200, 300 |
| wall thickness in cm | 20, 30, 24, 25 |
