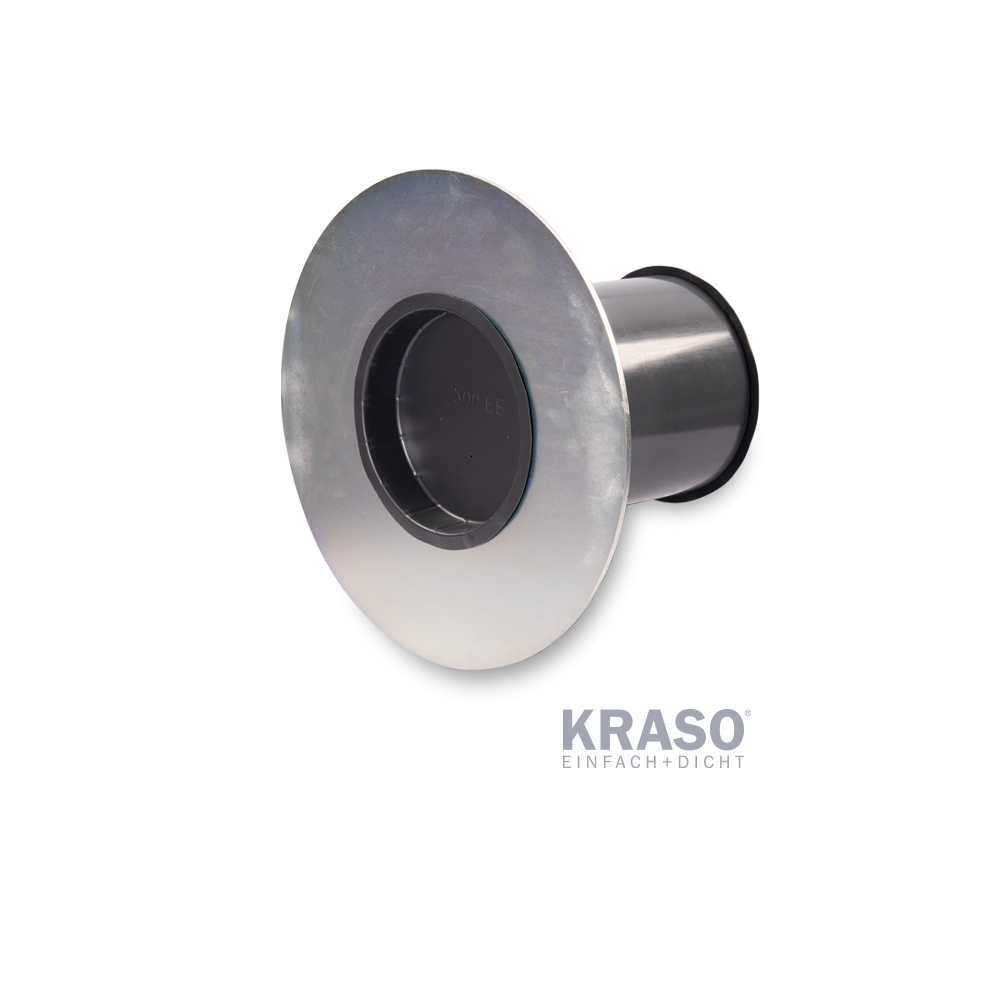

KRASO Casing K/FE/KF - electrogalvanised (piece)
plastic/true diameter casing/bonding flange
thick-walled true diameter plastic casing with electrogalvanised bonding flange, surrounding approx. 12 cm, according to DIN 18533, for concreting, for the installation of pipes or cables using a sealing insert (not included in the scope of supply), 2 KRASO Covers as an installation aid, ID = InternalDiameter true diameter casing
| DIN 18533 W1 -E and W2.1 -E
Simple intergation into the sealing of larger areas
+ True diameter casing with surrounding bonding flange according to DIN 18533 for a simple and fast integration into the sealing of larger areas (“black tank“)
+ As a recess for the retrofit installation of pipe or cables using a sealing insert!
+ Available in non-corrosive stainless steel or with thick-walled true diameter plastic casing
+ DIN 18533 W1 -E and W2.1 -E
Спецификации
| Internal Diameter ID | 80, 250, 100, 125, 150, 200, 300 |
| wall thickness in cm | 20, 30, 24, 25 |
Saatke päring või helistage meie projektijuhile, kui teil on küsimusi selle kohta, kuidas me saame oma hüdroisolatsioonilahenduste abil teid aidata.
