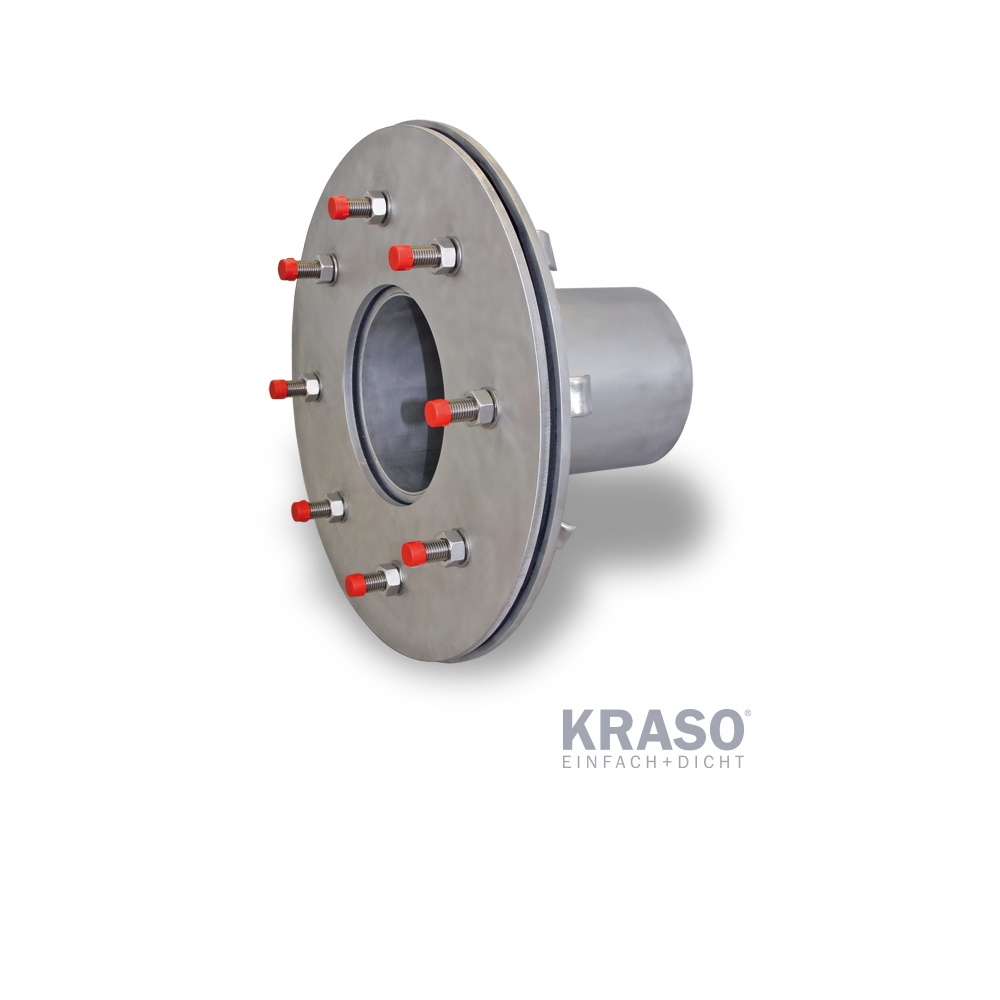

KRASO Casing Type FL/ZE (piece)
fixed-loose flange for concreting, with casing, for installation of media pipes using a sealing insert (not included in the scope of supply), for buildings with exterior sealing ("black tank") against pressing / non-pressing water according to DIN 18533. Available in non-corrosive stainless steel V2A or electrogalvanised with plastic casing, each with or without special coating
ID = InternalDiameter | DIN 18533 W2.1 -E and W2.2 -E
Fixed-loose flange for dowel-fixing or for concreting and as a sealing insert
+ For buildings with exterior sealing (“black tank“): according to DIN 18533 (“sealing of below-ground structural elements“)
+ Each design available as separate types for pressing and non-pressing water
+ Available in non-corrosive stainless steel V2A or V4A and in electrogalvanised steel
+ Upon request available with special coating for buildings with thick coating (e.g. KMB)!
+ DIN 18533: water exposure classes W2.1 -E and W2.2 -E (“medium impact of pressing water“ - water column ≤ 3 metres / „high impact of pressing water" - water column ≥ 3 metres)
Спецификации
| Internal Diameter ID | 80, 250, 100, 125, 150, 200, 300 |
| Design | pressing water, non pressing water |
| Material | non-corrosive stainless steel, electrogalvanised |
| Special coating | without special coating, with special coating |
| wall thickness in cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
