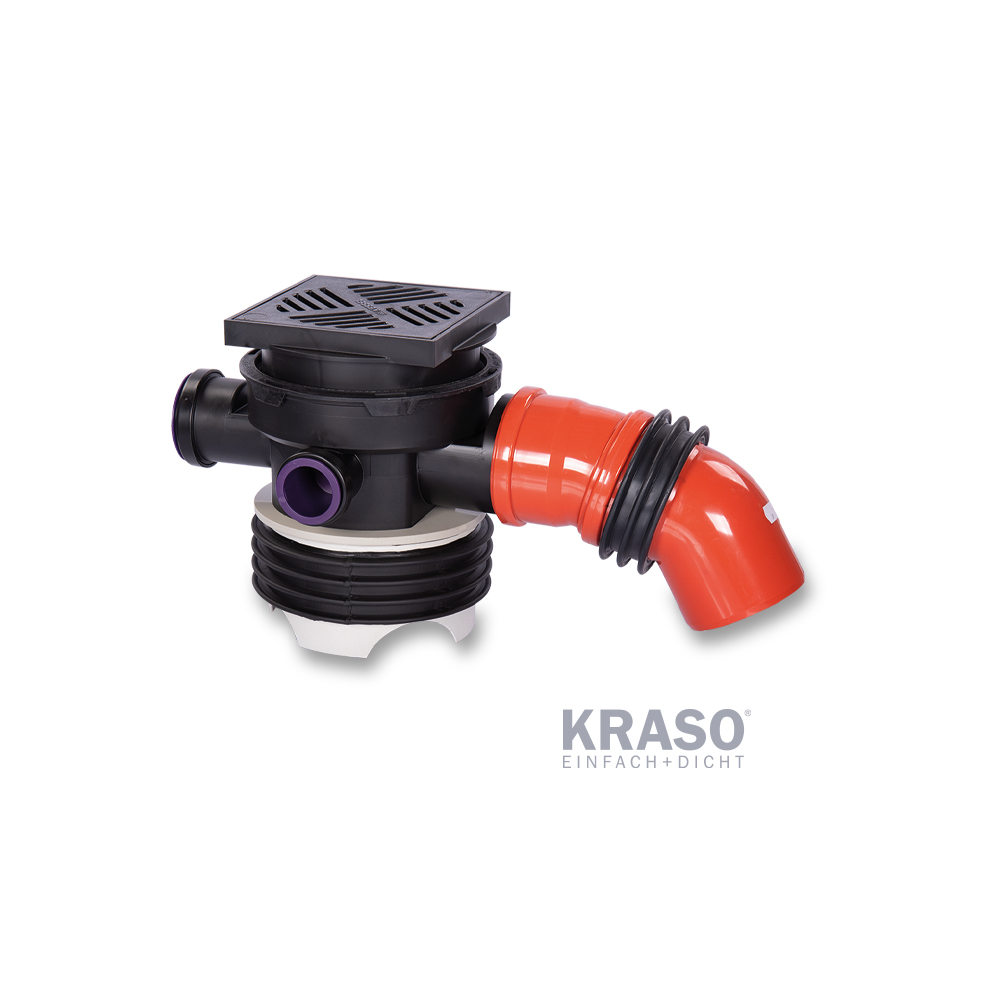

KRASO Basement Drain (piece)
For the installation in areas without traffic and for the connection of up to 3 intake pipes. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated, removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes
+ Drainage capacity: 1,8 l per second!
+ With height-adjustable and rotatable insert frame from 30 to 60 mm
+ Either with plastic or stainless steel grate
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available in KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Спецификации
| Foil flange | without foil flange, with foil flange |
| Type | plastic grate, stainless steel grate |
