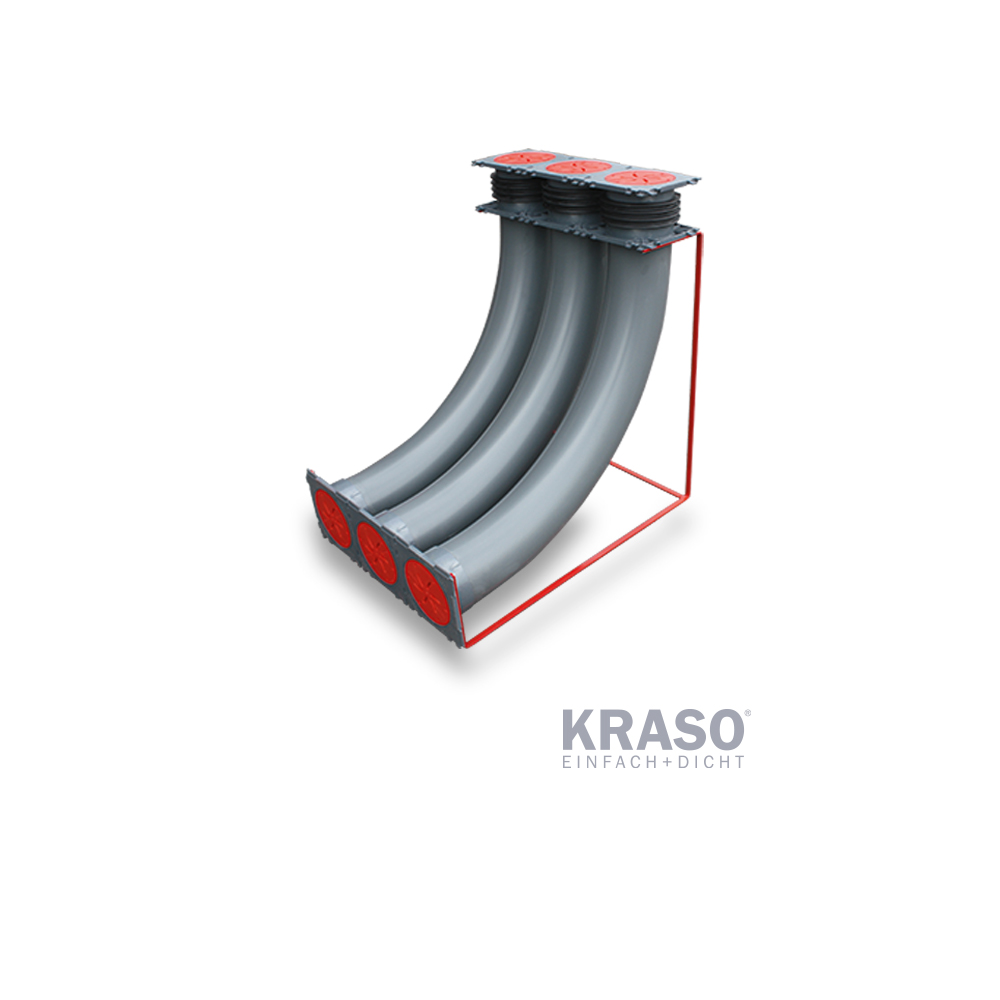

KRASO Cable Inlet Box System KDS 150

for the installation of cables and lines as for example water – electricity - telecommunication etc. into buildings without basement (non-licensed for gas lines according DVGW)

The flexible system for industry and commercial buildings

+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.

+ Due to the variable plug-in system the KRASO Cable Inlet Box System KDS 150 can be combined to many different sizes - according your requirements. + For the installation of cables and lines as for example electricity, telecommunication etc. into buildings without basements (non-licensed for gas lines according DVGW): the ideal solution for industrial and commercial buildings. + Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal.

 + With stable installation device for correct positioning before concreting.

+ Flexible plug-in possibilities from the outside due to KRASO Cable Penetration System KDS 150.

+ Additional media line sealing from the inside using KRASO Sealing Inserts.

+ Including: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed. The flexible system for industry and commercial buildings

+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.

+ Due to the variable plug-in system the KRASO Cable Inlet Box System KDS 150 can be combined to many different sizes - according your requirements.

+ For the installation of cables and lines as for example electricity, telecommunication etc. into buildings without basements (non-licensed for gas lines according DVGW): the ideal solution for industrial and commercial buildings.

+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal.

+ With stable installation device for correct positioning before concreting. + Flexible plug-in possibilities from the outside due to KRASO Cable Penetration System KDS 150.

+ Additional media line sealing from the inside using KRASO Sealing Inserts.

+ Including: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed.

+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!

Спецификации

System 4-fold или 3-fold или 2-fold или 1-fold
Bending radius in mm 650 mm или 1000 mm
