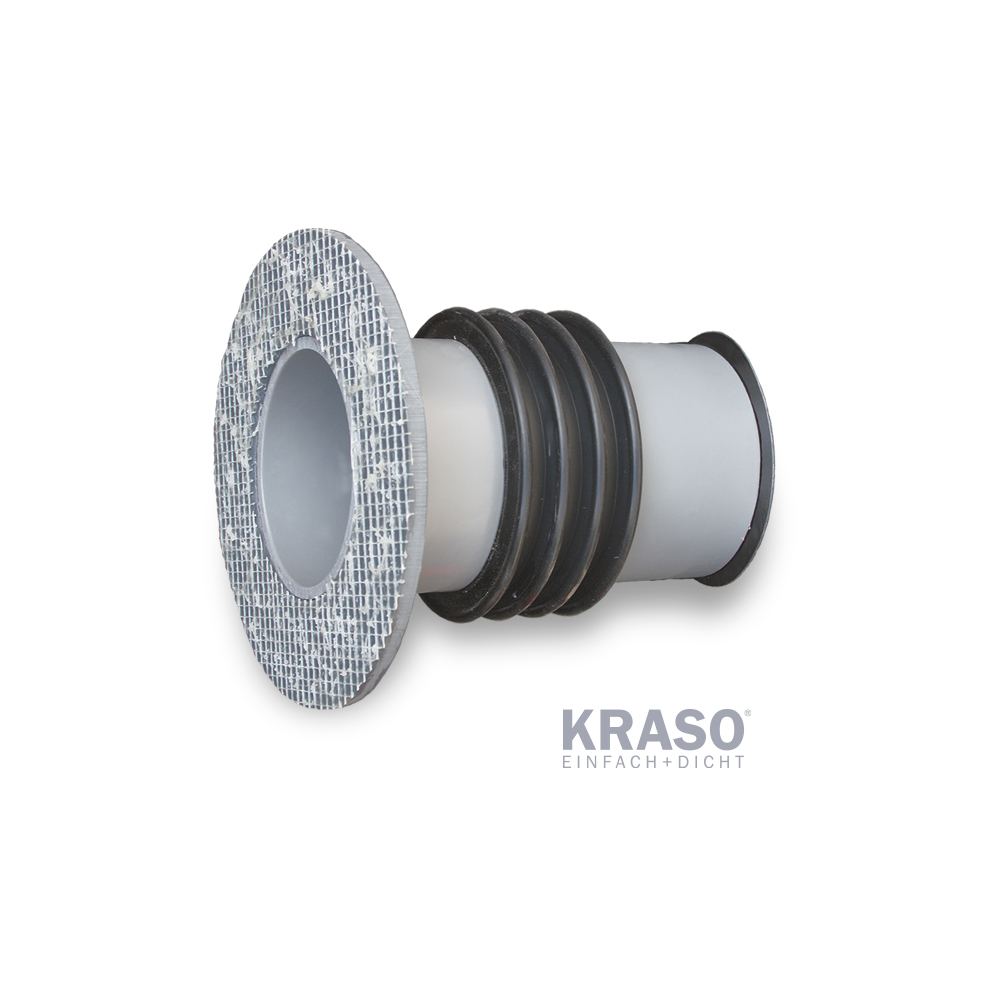

KRASO Casing Type FE/SF 5 (piece)





For concreting, with trowel flange on one side, roughened (KRASO Type FE/SF 5 - R) or tissue coated (KRASO Type FE/SF 5 - G), surrounding approx. 5 cm, 2 KRASO Covers as an installation aid, ID = InternalDiameter true diameter casing | DafStB waterproof concrete guideline: stress class 1 + 2
Secure connection of bitumen thick coating/reactive sealing
+ Thick-walled true diameter plastic casing for concreting
+ As a recess for retrofit installation of pipes or cables using a sealing insert
+ Aprox. 5 cm surrounding trowel flange on one side for a secure connection of bitumen thick coating and reactive sealing: roughened or tissue coated
+ KRASO 4 Seal - MPA-tested up to 10 bar! IAF-tested: radon-tight! Gas- and odour-tight - high-quality in terms of TA-Air!
+ Certified with the quality seal of the FHRK e. V.
+ Also available: KRASO Casing Type FE/SF 5 made of KG 2000 with trowel flange made of PP witzh dovetrail groove for the secure connection of bitumen thick coating and reactive sealings
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1-E and W2.1-E
Спецификации
Internal Diameter ID | 250, 100, 125, 150, 200, 300 |
wall thickness in cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
Trowel flange | trowel flange - r - roughened, trowel flange - g - tissue coated |
