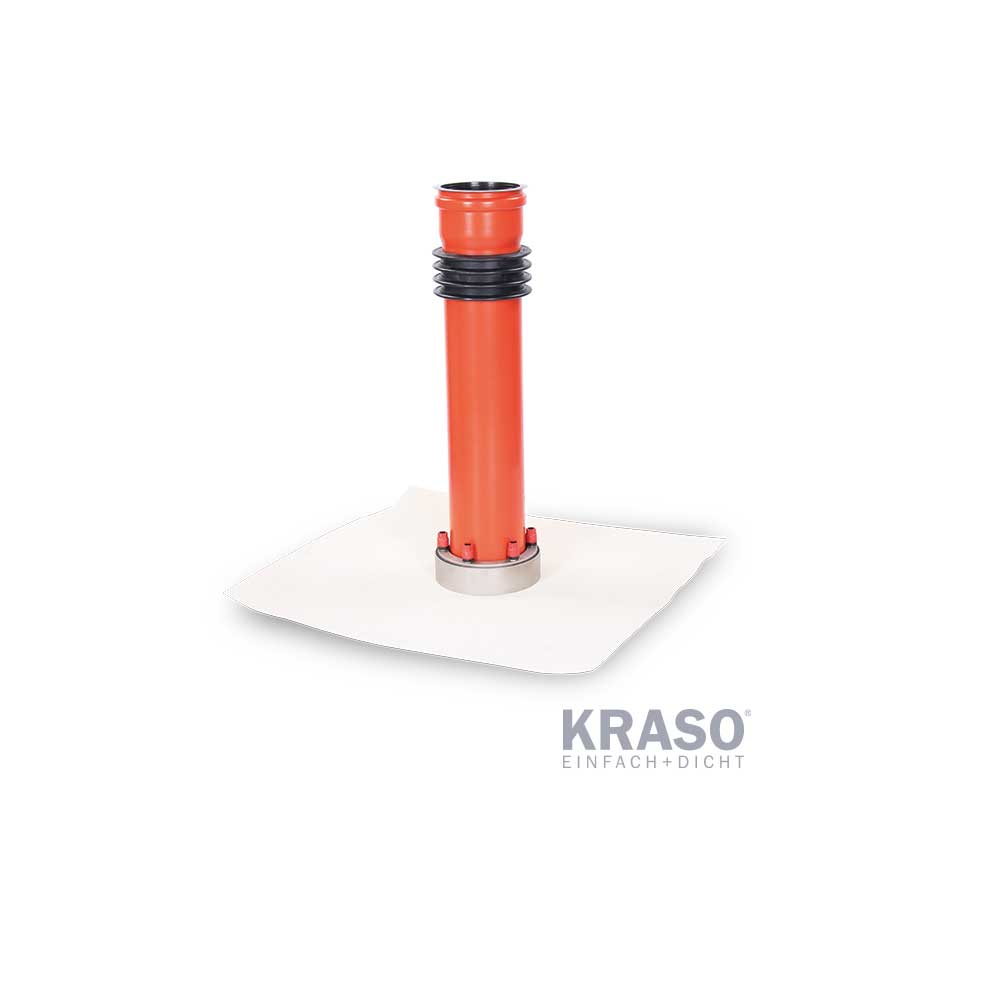

KRASO Floor Penetration Type FBV-BDF (piece)
Floor penetration for a compliant integration of fresh concrete composite films (FBV) | DafStB waterproof concrete guideline: stress class 1 + 2
The effective sealing system
+ Floor Penetration for an integration into fresh concrete composite sealing in compliance with the system
+ Independent of the manufacturer: fresh concrete composite films (FBV) from any manufacturer can be integrated into the system at the factory
+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ KRASO Floor Penetration Type BDF: the proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Made of dimensionally and pressure stable solid wall material with low abrasion! Installation even at lower temperatures!
+ Formed plug-in sleeve on one side for the connection of KG, HT or KG 2000 - pipes
+ Including KRASO Cover as building period protective cover
+ DafStB waterproof concrete guideline: stress class 1 + 2
Спецификации
| Diameter DN | 110, 125, 160, 200, 250, 315, 400, 500 |
| KG or KG 2000 | KG, KG 2000 |
