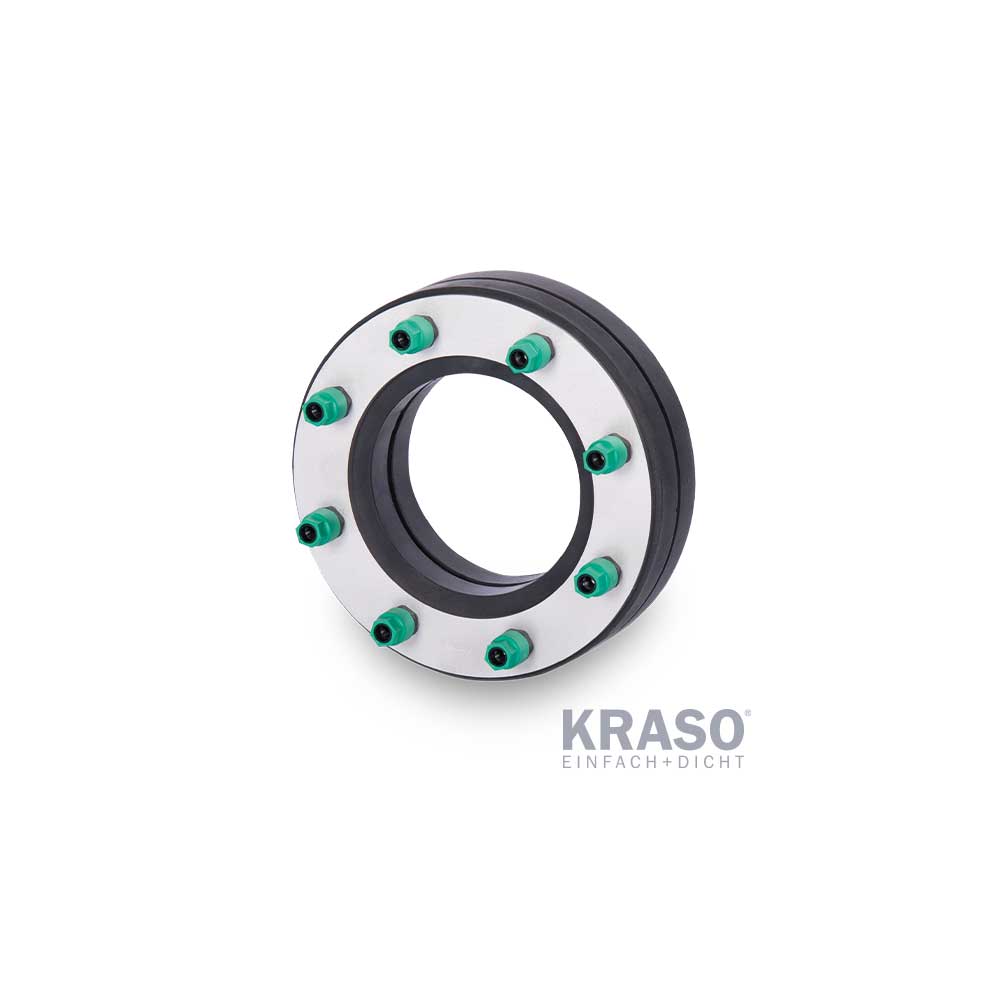

KRASO Sealing Insert Type GR (piece)
for installation of ribbed or corrugated media pipes | DafStB waterproof concrete guideline: stress class 1 + 2
The sealing insert for ribbed media pipes
+ For core drillings and casings
+ For corrugated and ribbed pipes!
+ With a specially developed soft rubber seal - double the sealing with 40 mm seal or quadruble sealing with 80 mm seal - and central pressure disk for even pressure distribution
+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, more studs for even pressure distribution, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to 1 bar / 2 bar!
+ Gas- and odour-tight - high quality in terms of TA-Air
+ Radon tightness IAF-tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Certified with the quality seal of FHRK e. V.
+ DafStB waterproof concrete guideline: Stress class 1 + 2
Документы
Спецификации
| Type GR | DD / GR, VD / GR |
| Core hole diameter or KRASO Casing in mm | 100, 125, 150, 200, 250, 300, 350 |
| max.d | 0-75, 0-100, 0-125, 0-175, 0-199, 0-225, 0-275, 0-325 |
Saatke päring või helistage meie projektijuhile, kui teil on küsimusi selle kohta, kuidas me saame oma hüdroisolatsioonilahenduste abil teid aidata.
