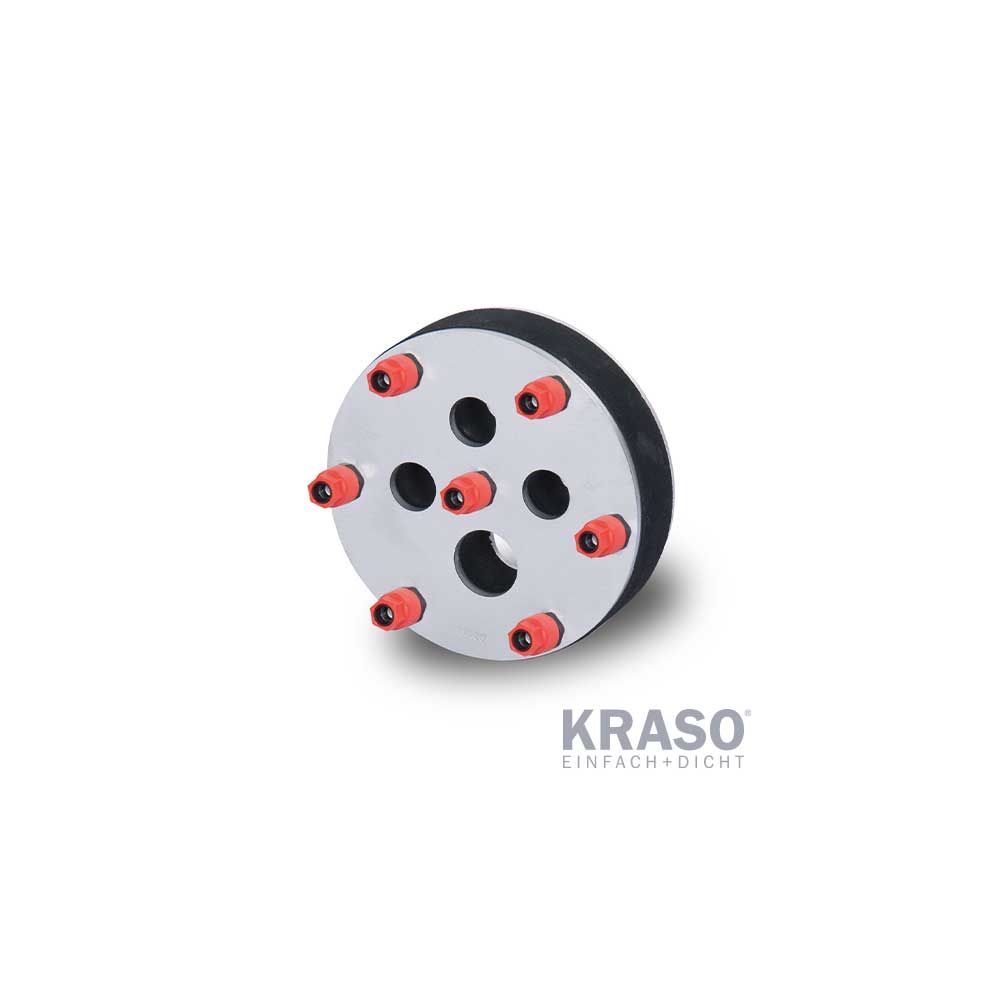

KRASO Sealing Insert Type SD 30 (piece)
for installation of pipes or cables, Torque Control Nut KRASO DKM*
KRASO Type SD 30 / KRASO Type SD 30 - T, split / KRASO Type SD 30 - GF, large flange
KRASO Type SD 60 / KRASO Type SD 60 - T, split / KRASO Type SD 60 - GF, large flange
| DafStB waterproof concrete guideline: stress class 1 + 2
The solution for special situations
+ For core drillings and casings
+ Individual and custom-made solution: with large flange or split!
+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, 30 or 60 mm seal made of a specially developed rubber mixture, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to 2,5 / 5 bar!
+ Gas and odour tight - High-quality in terms of TA-Air!
+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Certified with the quality seal of the FHRK e. V.
+ With arrangement template: see the arrangement at a glance!
+ Generally available within 24 hours!
+ Available at an additional charge: stainless steel V4A / KTW - recommendation / NBR - oil- and petrol resistant / temperature resistant up to 220°C
+ DafStB waterproof concrete guideline: stress class 1 + 2
Спецификации
| Type SD | SD 30, SD 30 - E, SD 30 - GF, SD 30 - T |
| Core hole diameter or KRASO Casing in mm | 50, 60, 70, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 700, 900 |
| Pipes or cables holes | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 |
