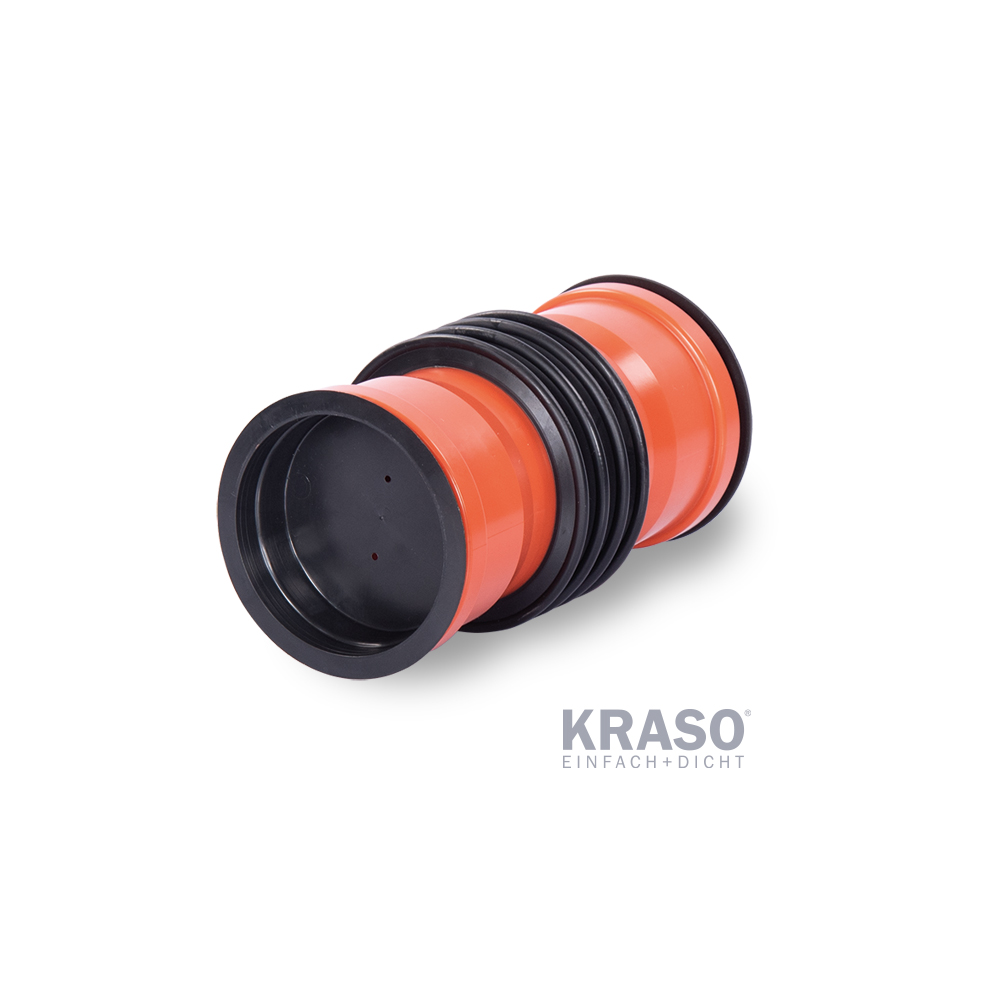

KRASO Wall Penetration Type B (piece)
In accordance with DIN EN 1401, for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2
The proven wall penetration made of solid wall material
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting
+ Formed plug-in sleeve on both sides for connection to KG/HT pipes
+ Including two KRASO Covers as an installation aid
+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Спецификации
| Diameter DN | 110, 125, 160, 200, 250, 315, 400, 500 |
| wall thickness in cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
