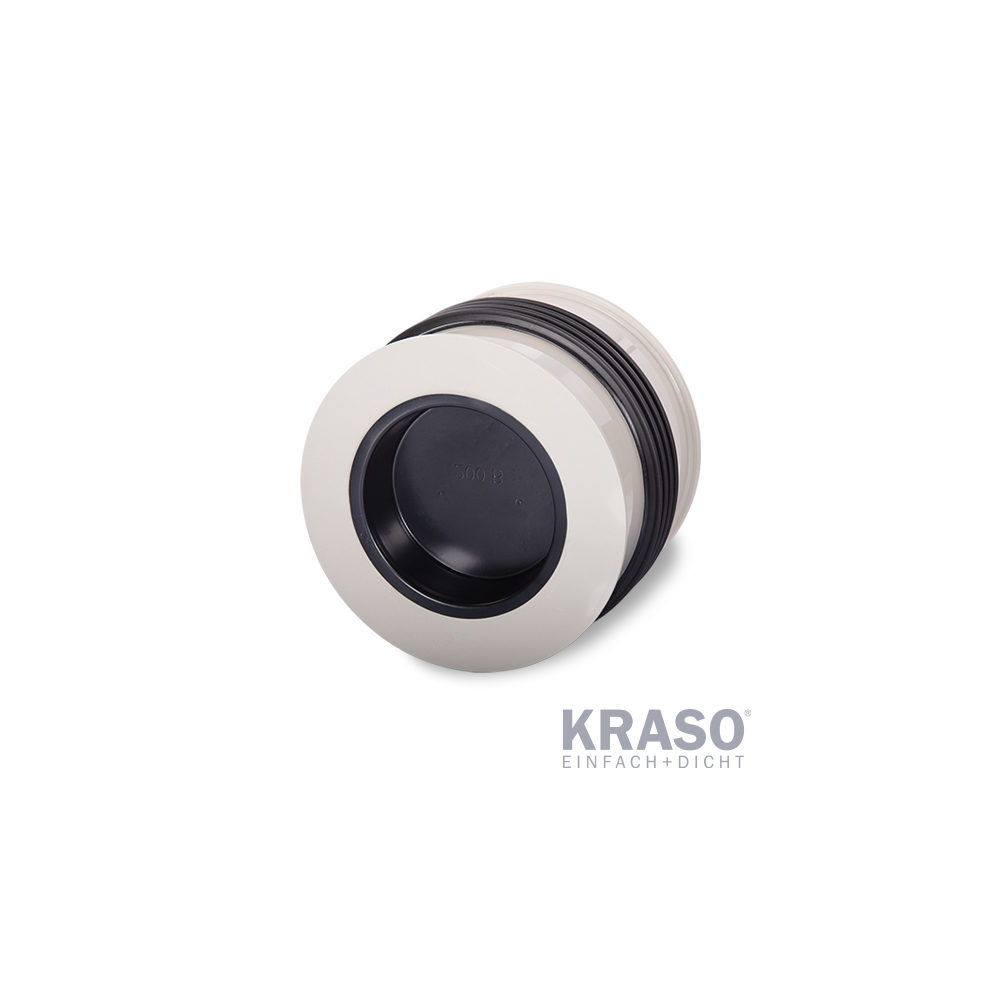

KRASO Wall Penetration Type B - thermally insulated - (piece)
In accordance with DIN EN 14758, for installation in waterproof concrete walls, thermally welded KRASO 4 Seal on both sides, formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid and thermally insulated body surrounding approx. 5 cm | DafStB waterproof concrete guideline: stress class 1 + 2
The proven wall penetration made of solid wall material
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested radon tight!
+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting
+ Formed plug-in sleeve on both sides for connection to KG/HT pipes
+ Including two KRASO Covers as installation aid!
+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Спецификации
| Diameter DN | 110, 125, 160, 200, 250, 315, 400, 500 |
| wall thickness in cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
